Multilayer Perforated SS Wire Mesh Filter Sintered Bronze Basket

Stainless steel wire mesh filters used as Aerospace Microfilters

Aerospace Microfilters

Our reputation with leading manufacturers of motion control and propulsion systems is unrivalled - winning several awards on time and on spec with almost 100% delivery. In addition to delivering high quality products, Recco's design engineers consistently provide time - and cost-saving advice to keep our partners profitable and use resources efficiently.

Cleaning operation of nozzle filter screen

Our filters maintain efficiency by capturing particles before they are ejected into the jet engine turbine.

-Injector ring screen

-Burner back ring filter

Deicing fluid filter

Our filters keep fluid lines unimpeded from clogs and harmful debris.

The glycol flows through the Recco deicing system filter and then into the sprayer to keep the nozzle running at the right flow rate.

Suitable for filtration of all aviation grade SAE/ISO/AEA Type I glycols, including monoethylene, divenyethylene, propylene glycol and other non-combustible petroleum products.

Inline and last chance filters

Jumao filters are used at critical points in the fuel system

Wash flow filters for fuel, start-up, take-off, flight and emergency power in the flight control module

Remove large particles from the fuel outside the fuel tank

Filter out tiny debris and wear particles that may shear into the fluid during engine operation

What is stainless steel wire mesh filters?

Stainless steel wire mesh is formed by high-quality stainless steel wire under specific temperature conditions, and then stretched through the wire drawing machine to the supplied wire.

Features: This wire structure is precise, mesh uniform, mesh filtration accuracy is good, with wear resistance, high temperature, acid resistance, corrosion resistance and other properties.

Stainless steel mesh is used for screening and filtration under acid and alkali conditions. It is widely used in mud nets in petroleum industry, screens in chemical fiber industry and pickling nets in electroplating industry. In addition to the above, stainless steel wire mesh is also used in the construction industry, sand filtration, liquid and gas filtration.

Main parameters of stainless steel wire mesh:

Material: stainless steel wire, nickel wire, brass wire. Stainless steel wire material is divided into SUS 302, 304, 304 L, 316, 316l, etc.

Grid: Shows the thinness and density of the mesh. In general, higher than 80 is considered high. Less than 80 purposes are called coarse.

The wire diameter is divided into warp and weft.

Common types of weaving: plain, twill, Dutch, mat twill, double silk Dutch, five weft.

Borg is a professional manufacturer of stainless steel wire mesh. A complete range of products. We can provide stainless steel wire mesh of different materials, such as 302 SS wire mesh. In addition, we also have various types of mesh, such as stainless steel wire cloth, filter, screen, sheet and so on.

Gas filtration With Stainless Steel Wire Mesh Filters

Gas filtration is the act of passing gas or steam through a fine-mesh filter to remove polluting particles. To properly filter gases, engineers can use Brownian motion, electrostatic, locking effect, inertia, or screening effect methods.

Brownian motion

Collision: A method by which particles found in the air stream as well as atoms at the molecular level collide, causing particles to move sporadically. This motion promotes gas filtration because it forces particles through the filter.

This method is usually used to filter fine gas particles.

Static electricity

This method uses a filter to attract charged particles, remove them and filter the gas.

This method is usually used to filter fine gas particles.

Locking effect

The filter medium employed in this method has a geometric structure and is designed to capture particles in the gas as they pass through the filter.

This method is usually used to filter larger gas particles.

The momentum flow of the gas forces the pollution particles to be trapped in the filter by a filtration method.

This method is usually used to filter larger gas particles.

Screen effect

In this method, the filter cake is collected into particles larger than the filter aperture, and the unwanted gas particles are extracted.

This method is usually used to filter larger gas particles.

Data Table Format For Stainless Steel Wire Mesh Filter

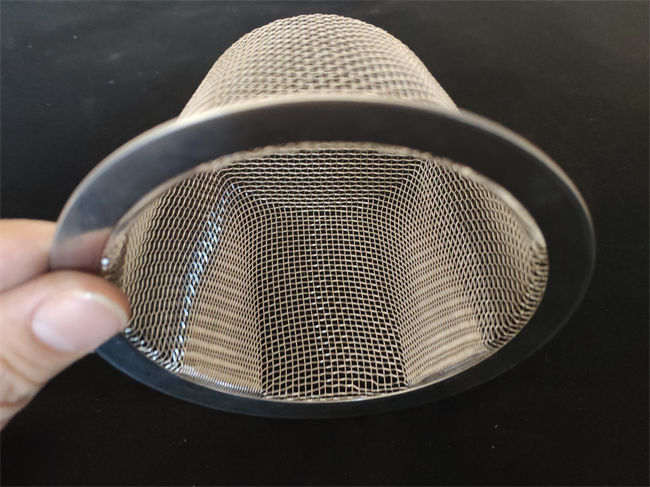

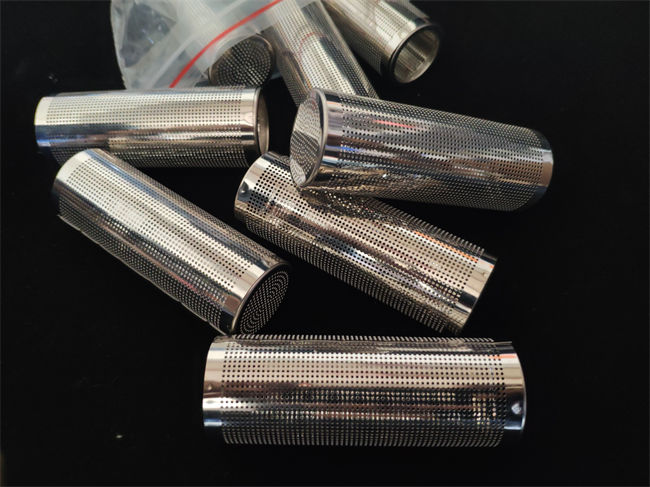

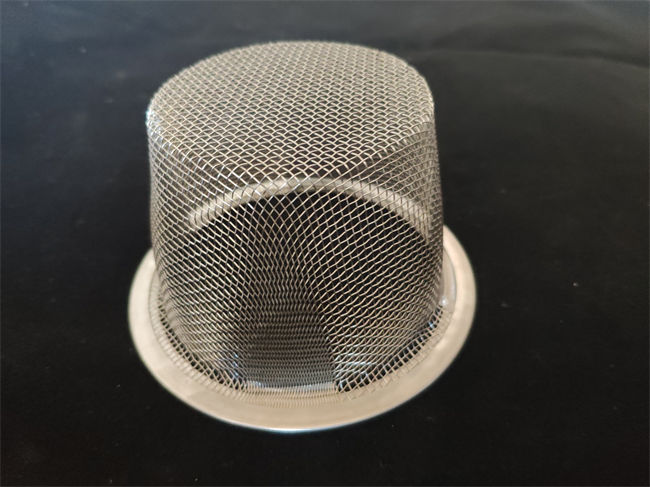

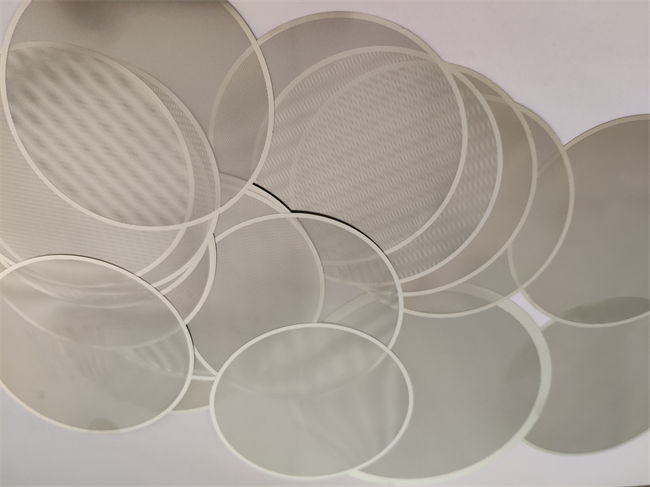

Pictures of Stainless Steel Wire Mesh Filter

Shenzhou City Jumao Metal Products Co.,Ltd has developed decorative wire mesh since 2016,which include Metal curtain series and Metal architectural mesh series. Except these two series, metal wire mesh,wire mesh processed goods and curtain push rods are what we provide. Today we have more than five hundred specifications of products.Our factory was certificated by CE. We are dedicated to enhancing building’s visual effect,increasing buildings functionality and economic optimization all the time. We have various kind of material,color and design for customer to select.From customizing samples to installation,our full and efficient service would satisfy and exceed your needs.Remarkable design would not be replaced.Our flexible wire mesh offer you fantastic inner and exterior decor which are environmentally friendly and harmonious.

Jumao Metal Products Co.,Ltd has been at the cutting edge of innovative applications since 2008. We specialise in providing metal curtains ,woven wire mesh and associated products for Balustrades, Cladding, Security Screens, Ceilings and other decorative features.Jumao offers designers the creative freedom to turn even the most functional project into a work of beauty. We supply mesh patterns which are available in a wide range of finishes from eye-catching natural metal, to brightly coloured coatings or finishes. Our metal mesh can be used both internally or externally, is largely self-maintaining, durable and flexible, can be designed to fit the underlying structure and is strong enough to meet safety and security requirements.
